New Product Announcement

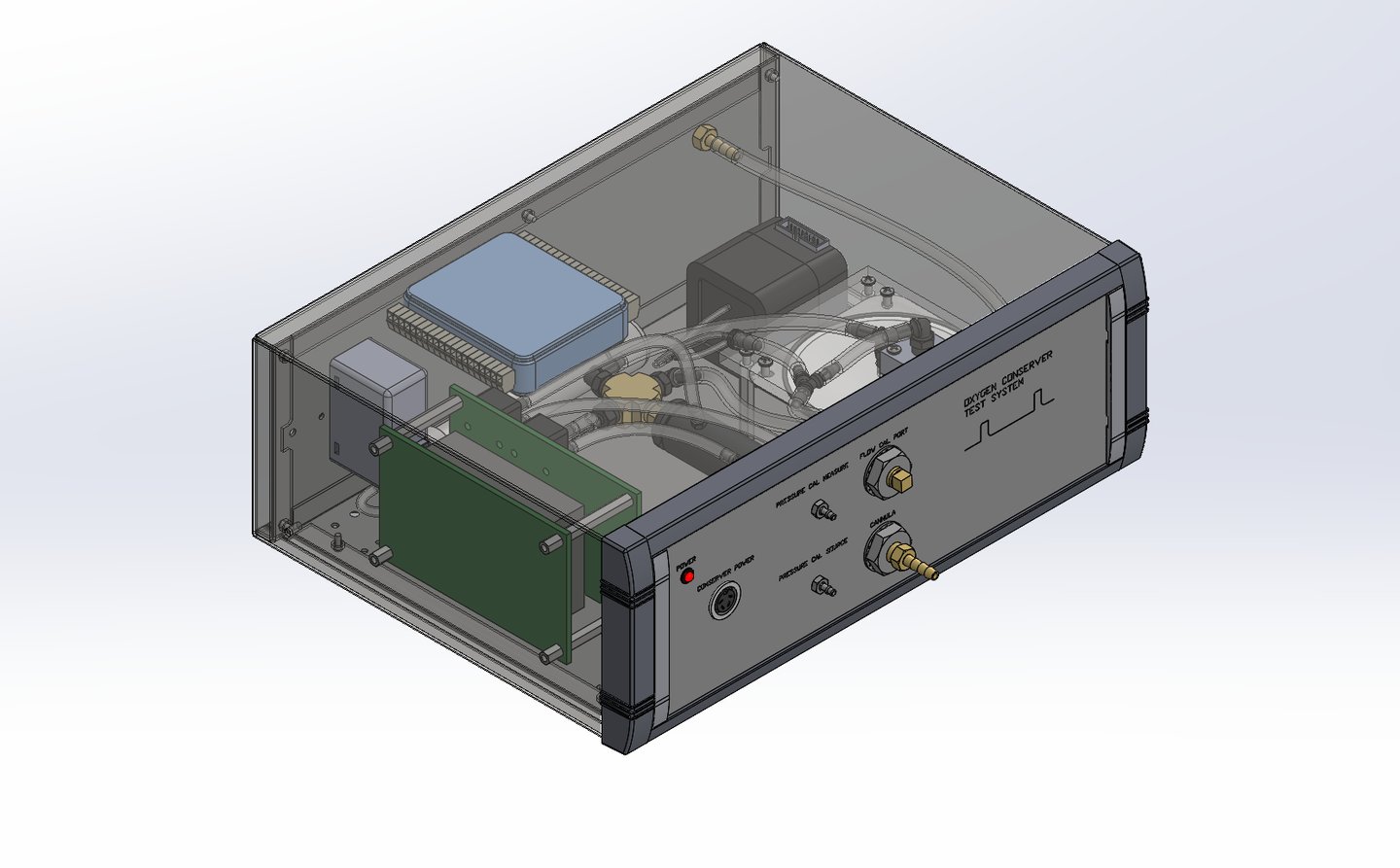

O2 Conserver Checker

A new device for checking the function of oxygen conserver type devices including portable concentrators.  Also check other supplemental oxygen systems for flow and oxygen concentration.  Check the pulse volume delivered with each breath and the pressure required to trigger a pulse.  Also check the flow rate of continuous flow modes.  There is also an ultrasonic oxygen concentration sensor for checking the oxygen purity output from concentrators.  For pricing and purchasing information send an email using the contact link.

product_specifications_rev_d.pdf
File Size: 596 kb
File Type: pdf
Download File

operating_instructions_rev_f.pdf
File Size: 1267 kb
File Type: pdf
Download File

Companion Software for O2 Conserver Checker

The O2 Conserver Checker Monitor Software is a Windows program that connects to the O2 Conserver Checker over a Bluetooth connection.  Measurements that are made on the O2 Conserver Checker are transmitted to the PC and the data is then presented in a table and on real time graphs.  Data can also be streamed to a file for saving data.

Suggested test points and pass/fail limits for each test are included for a variety of current portable concentrators.  By loading the test parameter file the program will guide the user in testing a product and for each test a pass or fail indication is provided.  After all the tests are completed, a report is saved as a PDF file and can be printed.

A demo version of this software along with the installation instructions and operating manual can be downloaded by clicking on the link below.  This will ask for contact information and then a zip file which contains all of the files needed can be downloaded.  The demo version will operate for one month so you can test it with a unit and try out the various functions.  Contact aaron@dirksinstruments.com about a license key.
Software Download Link
conserver_checker_monitor_instructions_c.pdf
File Size: 1983 kb
File Type: pdf
Download File

sample_device_tests.xlsx
File Size: 219 kb
File Type: xlsx
Download File



​Custom Test Equipment and Product Design

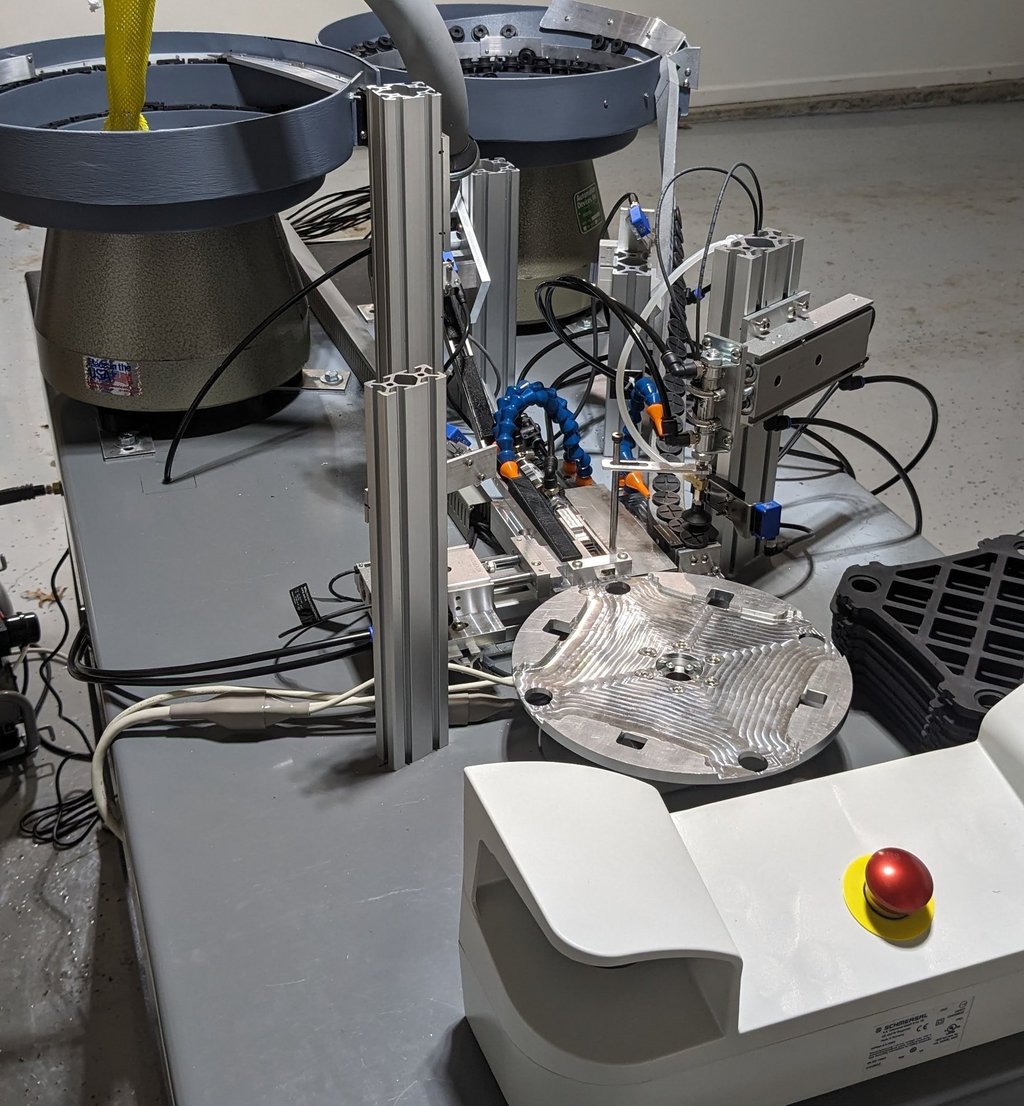

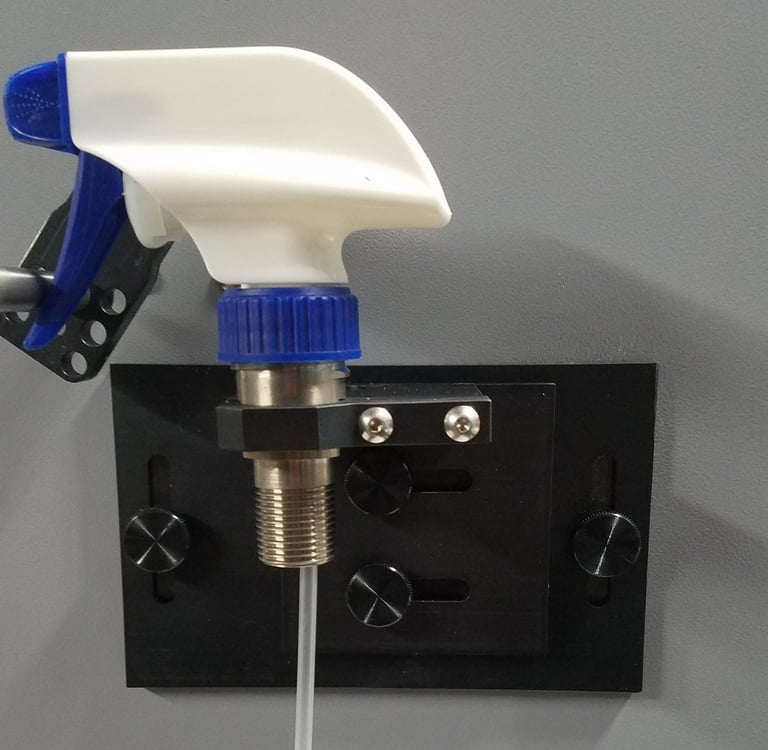

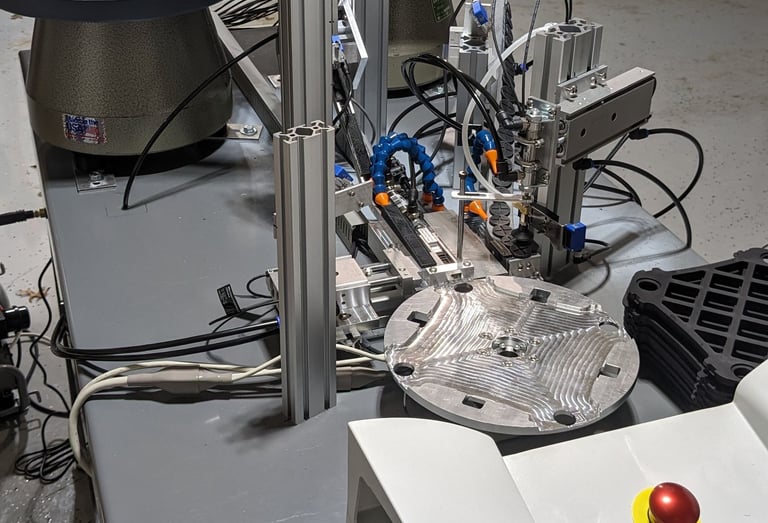

Let us help you with your special instrumentation and product design needs.  We specialize in test fixtures and test systems for mechanical or electromechanical devices for use in product development and production testing.  We can also provide product design, prototyping and low volume manufacturing services for low volume products.

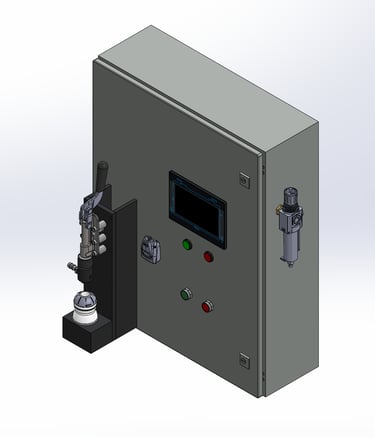

Mechanical Design

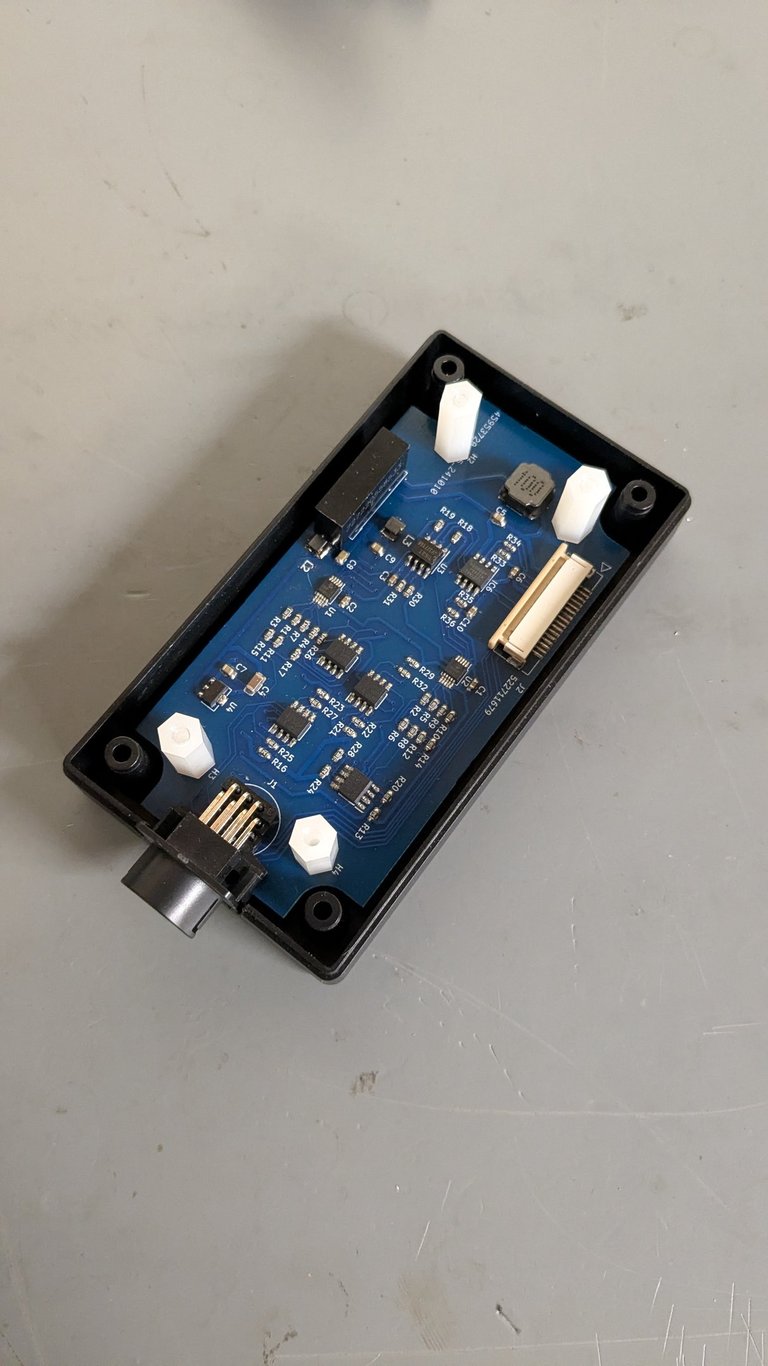

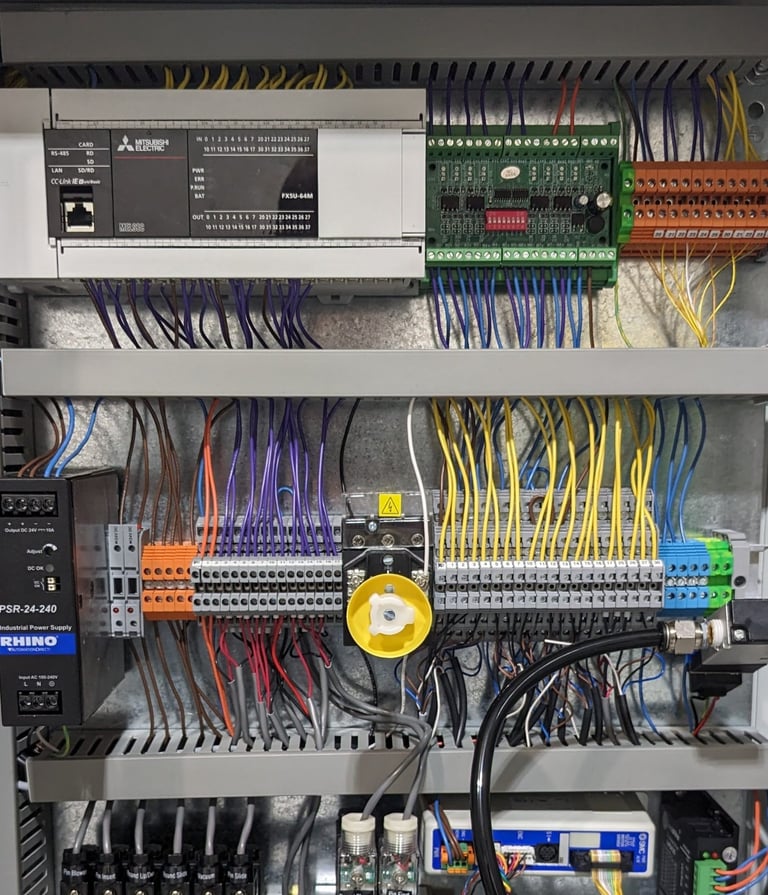

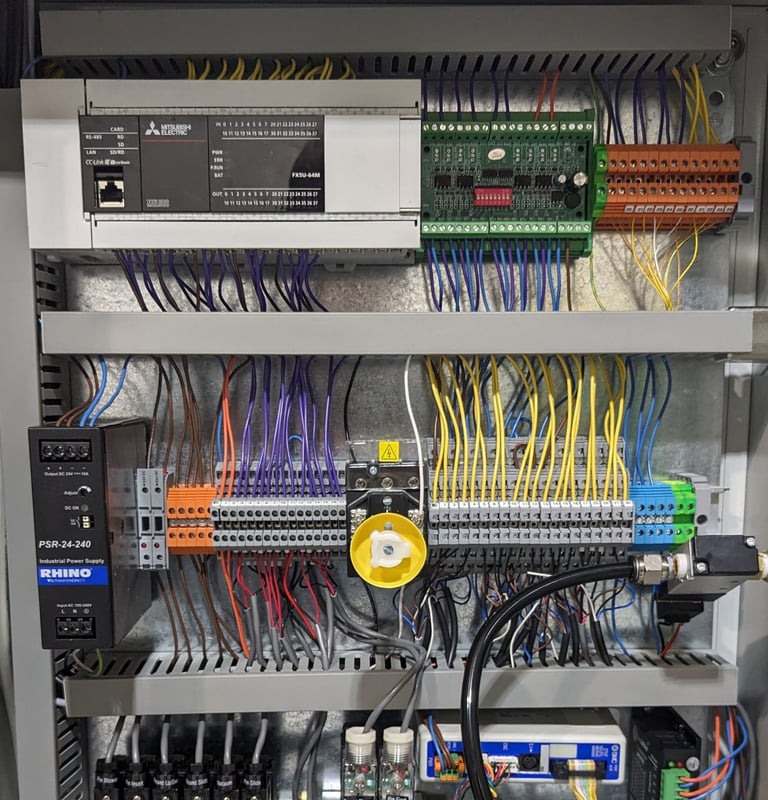

Electrical Design and Assembly
Software Development
Machining and Manufacturing
Low Volume Manufacturing and Assembly
Product Testing and Clinical Support
